SPECIFICATIONS

APP Compatibility: yes

Aperture: F1.5

Assembly Mode: Rearview Mirror

Audio Recorded: Yes

Brand Name: Onedo

Built-in Screen: Yes

Cable Length: 6m

Camera Resolution: 2560x1440

Chipset Manufacturer: RK

Display: IPS

Display Size: 9.88

Frames Per Second: 30

High-concerned chemical: None

Input/Output: AV

Interface: AV-In,Wi-fi,Micro SD/TF

Is Batteries Included: no

Item Type: Car DVR

Loop-Cycle Recording Feature: Yes

Max External Memory: 128G

Maximum Video Frame Rate: 30

Memory Card Required Reding Speed: Class 10

NightShot Function: Yes

Number Of Lenses: 4

OSD Language: Chinese (Simplified),Chinese (Traditional),English,French,German,Korean,Polish,Russia,Spanish

Origin: Mainland China

Original Package: Yes

Pixels: 1200Mega

Power Source: Corded electric

Rear Camera: Yes

Screen Ratio: 16:9

Special Features: G-Sensor,motion detection,sd/mmc card,With Rearview Mirror,Anti Surge Voltage Impact,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,wifi function,Voice Control,Parking Monitor,3D DNR

Touch Screen: Yes

Video Code: AVC

Video Format: AVI

View angle: 170

Weight: 0.53

Working Temperature: -20~70

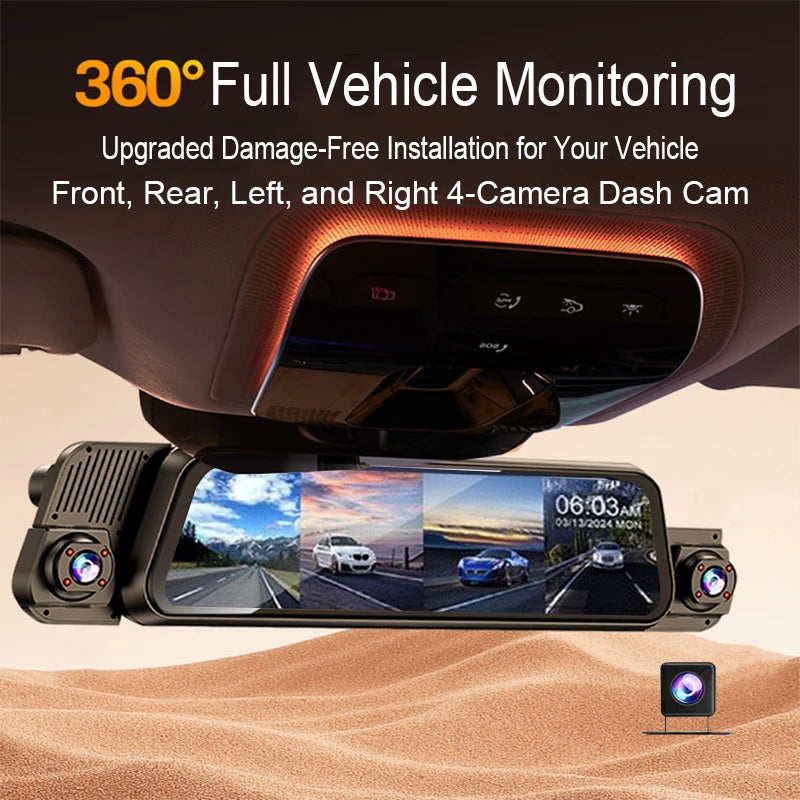

9.66-inch Quad-Camera Streaming Dash Cam

World's First Lightweight 4-Channel System for Quick Setup

Front, left and right cameras are built into a single unit. Forget complex side-camera installations—just strap it onto your rearview mirror and start recording right away.

(Professional installation is recommended for the rear camera.)

Key Features

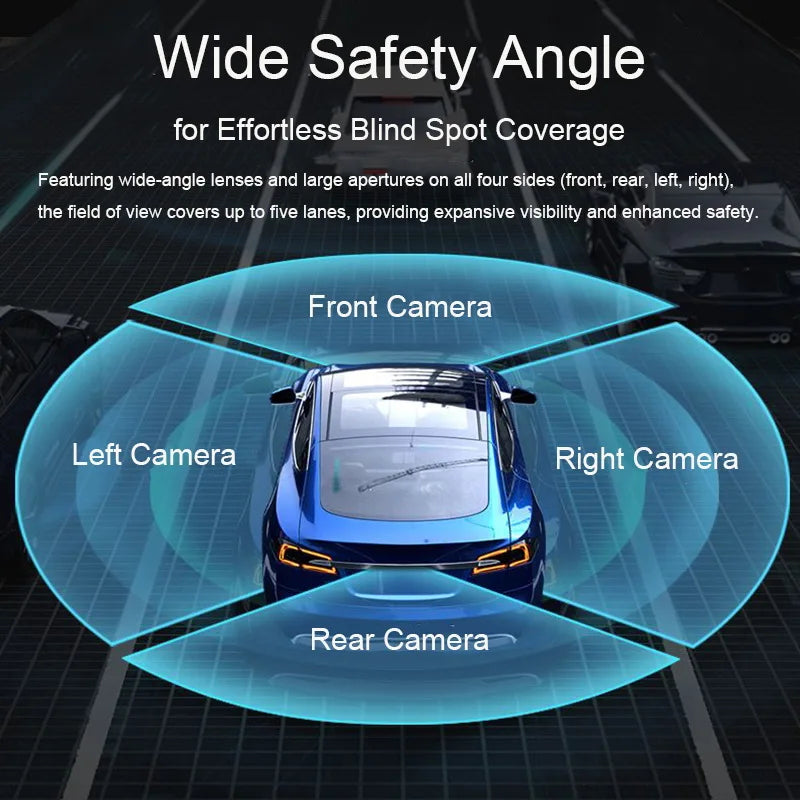

📹 Four-Camera Monitoring

Cameras at the front, back (optional), left, and right sides capture crisp live video both inside and outside your vehicle, keeping your car fully protected.

🔄 180° Rotatable Lenses

Side cameras rotate 180° forward/backward and up/down, so you can adjust angles to record exactly what you need.

🖥 9.66-inch IPS Touchscreen

A responsive high-definition touchscreen makes it easy to operate while driving, helping you stay safe.

🔁 Seamless Loop Recording

When the memory card is full, the oldest footage is automatically overwritten. Exception: G-Sensor-triggered videos are locked and kept safe.

🚨 Motion Detection

The dash cam starts recording automatically when movement is detected, guarding your vehicle around the clock.

⚡ 3-Axis G-Sensor

Built-in G-Sensor locks video immediately upon detecting a collision or strong vibration, protecting important evidence from being overwritten.

🅿️ 24-Hour Parking Monitoring

If the dash cam senses impact or tampering while parked, parking mode automatically starts recording.

(This feature requires our hardwiring kit.)

⏳ Time-Lapse Recording

During parking mode, video is recorded at 1–10 fps, saving storage space and making playback easy.

(This feature requires our hardwiring kit.)

📴 Screen-Off Recording

You can turn the screen off manually or automatically while recording continues in the background. It also works as an anti-glare rearview mirror.

🌈 HDR Imaging

HDR technology boosts dynamic range by 3 levels for clearer, more detailed recordings.

📱 Zero-Data Mobile Connectivity

View videos directly on your phone via the app and Wi-Fi hotspot—no mobile data needed.

🔍 Six HD Glass Lenses

The adjustable front camera paired with six high-quality glass lenses captures sharp, finely detailed images even in challenging light.

🌙 Starlight Night Vision

Professional infrared technology delivers vivid, realistic video even in complete darkness.

💡Need to Purchase Compatible Accessories Separately?

🔗 Compatible Rear Camera Link:

https://www.aliexpress.com/item/1005011721188644.html

➡️ Please select the [2.5HPJ USB Fisheye] package

🔗 Compatible Fuse Box Power & Cigarette Lighter Power Adapter Link:

https://www.aliexpress.com/item/1005011574462097.html

I. Dash cams typically support two power supply options:

1.Cigarette lighter adapter:

Advantages: Easy to install; simply plug it into the car’s cigarette lighter socket.

Limitations: The dashcam will not receive power when the car is turned off, so the parking monitoring feature cannot be used.

2.Hardwiring Kit(Fuse Box Wiring Kit ):

Advantages: Allows continuous recording even when the car is turned off, enabling 24/7 monitoring. Equipped with a dedicated chip that automatically cuts off power when the car battery voltage is low, protecting the battery.

Limitations: Requires manual installation and wiring to connect to the car’s fuse box.

II. Installation

A.Installation location of recorder host

Suggest the installation area as shown in the diagram, hide the connection line along the front windshield into the ceiling and connect it to the fuse box through the A-pillar;

B.Hardwiring Kit(Fuse Box Wiring Kit,Small Blade Fuse,Blue,Size 10.9mm x 16.3mm)

Paired with a dedicated intelligent step-down line, achieving 24-hour parking monitoring requires constant power connection, and low-voltage automatic power-off protection to prevent battery depletion;

C.Cigarette lighter adapter

Using the same method, hide a hidden line on the same path on the passenger side, and connect the central control cigarette lighter to power up through the lower part of the passenger storage compartment.

🚫 Standard phone USB cables WILL NOT WORK

Generic Type-C cables cannot provide stable power

Third-party adapters may cause feature failures or unstable performance

💡 Solution:

Use only the included hardwiring kit (for parking mode)

Or purchase our official cigarette lighter adapter (for basic recording)

💾 Storage Card Requirements

1. No Built-in Storage – SD Card Required

📌 Must purchase a microSD card separately (not included)

📌 Minimum Requirement: U3/V30 or higher speed class（V90 - Optimal for 4K recording）

📌 Recommended: High-endurance cards (128GB ideal)

2. Maintenance Tips:

🔧 Format monthly for optimal performance

⚠ If card repeatedly asks to format: Replace with a compatible high-endurance card

✅ Quality Assurance

🔍 Every unit undergoes 2+ rounds of testing before shipment.

📦 All packages are tracked – multi-unit orders may arrive in separate shipments.

🛠 Missing items? Contact support or wait for remaining parcels.

🔍 Usage Tips

1️⃣ Remove protective film from cameras & screen before use.

2️⃣ Clean lenses monthly for clearest footage.

3️⃣ Need help? Contact support for the full user manual.

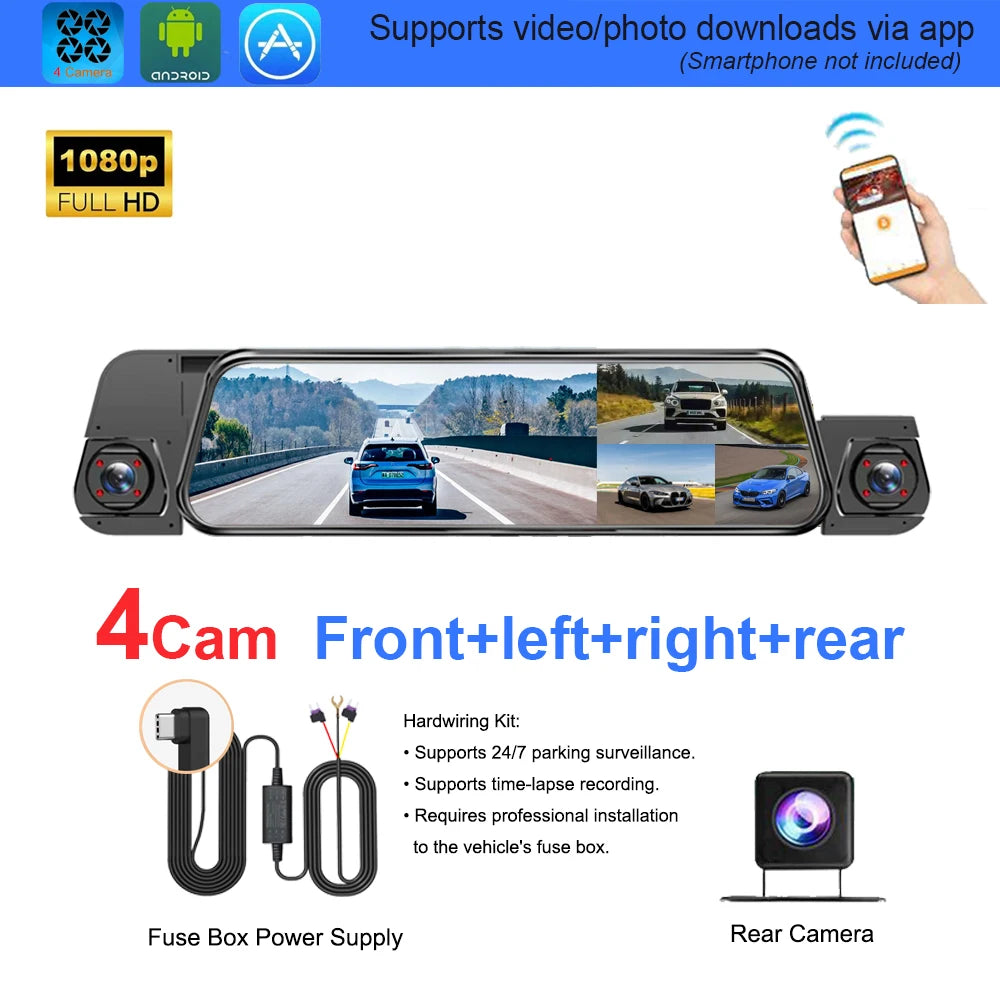

What’s Included

✓ Main unit with built-in front, left, and right cameras

✓ Optional rear camera (if selected)

✓ Optional Hardwiring kit for parking mode features(if selected)

✓ Mounting straps

✓ User manual (Download through QR code)

✓ 64GB-128GB microSD Card Options Available

Product Information

All our products undergo two rounds of functional testing and aging tests to ensure every function operates correctly upon arrival.

Key Notes:

1. Power Requirements

• No built-in battery; requires external 5V power supply

• Current must exceed 2.5A for proper operation

2. Use of Included Accessories

• For long-term stable operation, only use the power cable provided in the package

• Avoid using phone chargers or phone cables — standard mobile adapters and cables generally cannot supply over 2.5A current, which may result in issues such as:

No camera display

Horizontal line interference

Abnormal imaging

3. 24‑hour Parking Monitor

• Must use our dedicated cable for this function

• This cable includes car battery protection: it automatically cuts power to the dash cam when low battery voltage is detected

4. Shipping Details

• The entire shipping process is video‑recorded

• Orders of 2 or more items may be delivered in multiple packages

• If the quantity received seems incorrect:

Contact customer service, or

Please wait patiently for the arrival of additional packages

For more information, please contact customer service to obtain the user manual.
